VW Bay Window Camper Van Parts


Van Restoration Kits - A Full Selection Of Kits For Your Van
Resto
Early Bay
  Early VW Bay Window Van Nut & Bolt Restoration Kit
Resto
Late Bay
  Late VW Bay Window Van Nut & Bolt Restoration Kit Bay Van Resto Kit
BYV-Basics
  Bay Window Van BASICS Set Of Stainless Parts
  Contains all of the parts of our main Resto kits but all mixed up in a single bag.


Structural Appendages - Chassis, Body, Bumpers Wings etc.

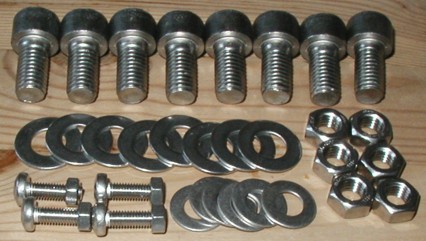

BYV-1.1.1   Bumper Iron Bolts

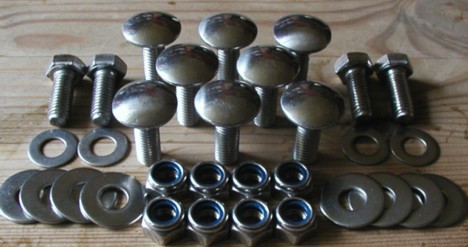

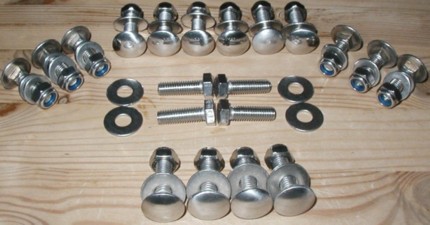

BYV-1.2.1   Bolts, Nuts & Washers To Fix The Bumpers To An Early Model Bay Van
BYV-1.2.2   Bolts, Nuts & Washers To Fix The Bumpers To A Late Model Bay Van
BYV-1.2.3   10 White M8 Hexagon Bolt Cover Caps To Fit LATE Bay Van Front Bumper
BYV-1.2.4
  Rear Bumper Splash Trim Panel Screws (EARLY Bay)

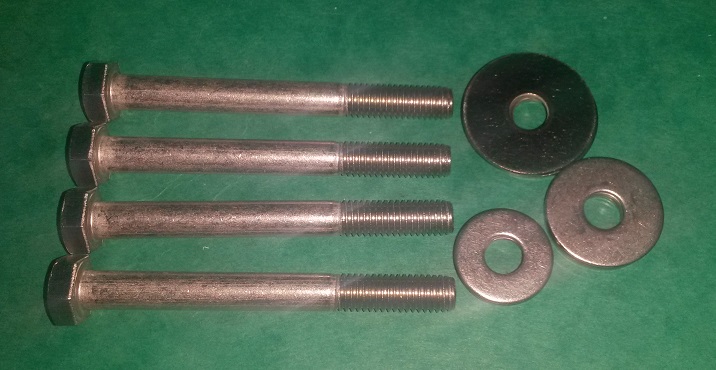

BYV-1.3.1   Rear (Removeable) Valance Bolts
BYV-1.5.2   Belly Pan Screws - Stainless Self Tappers


Door Fittings

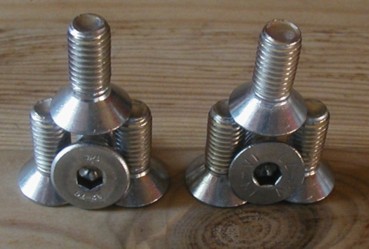

BYV-2.1.1   Cab Door Hinges To Body (Both Doors) - Countersunk Pozi Head
BYV-2.1.2   Cab Door Hinges To Body - Hexagon Head

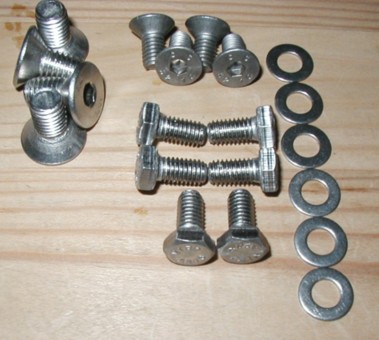

BYV-2.2.1   Cab Door Lock, Handle & Striker Plate Screws
BYV-2.3.1   Cab Door 'Pull' Handle Screws

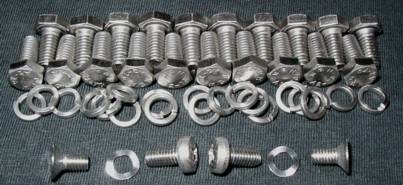

BYV-2.4.1   Cab Door Window Winding & Quarterlight Mechanism Screws


Side Door & Door Components

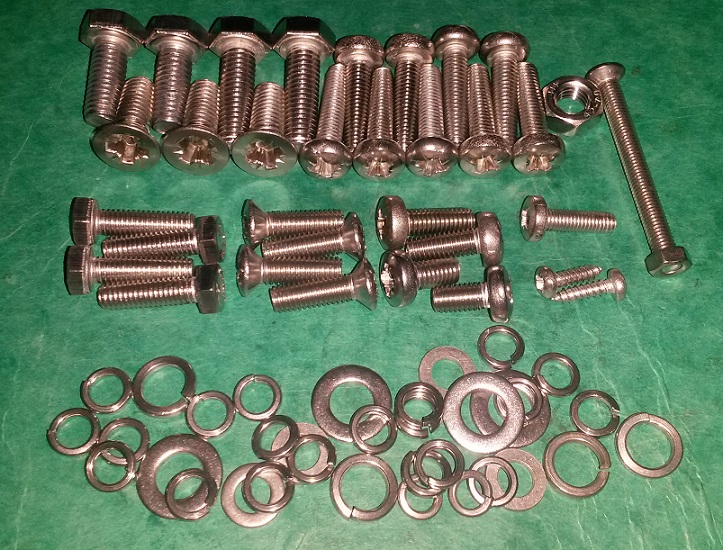

BYV-3.1.1   Sliding Side Door Stainless Screws Kit


Bonnet, Boot, Engine Compartment & Components
BYV-4.1.1   Rear Hatch Hinge Screws (EARLY)

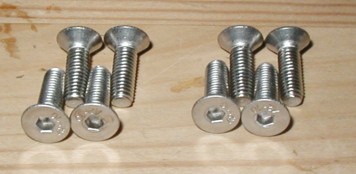

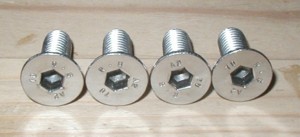

BYV-4.1.2   Rear Hatch Hinge Screws (LATE) Rear Hatch Hinge Screw Buy Me
BYV-4.2.1   Rear Hatch 'Shut' Guide Screws

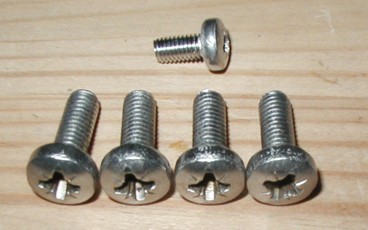

BYV-4.3.1   Rear Hatch Lock & Catch Screws

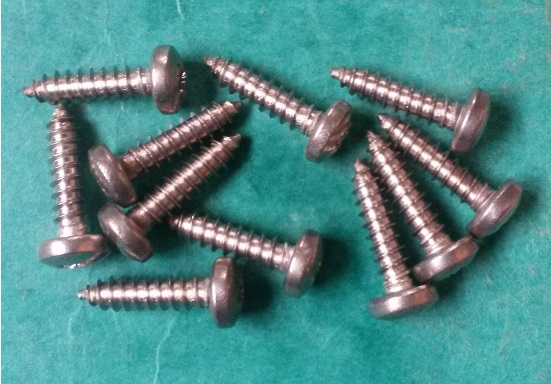

BYV-4.4.1   Rear Hatch hinge Cover Screws

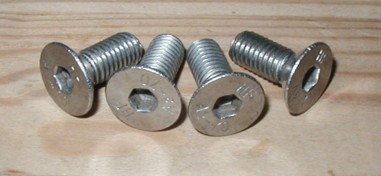

BYV-4.5.1   Deck Lid Hinge Screws

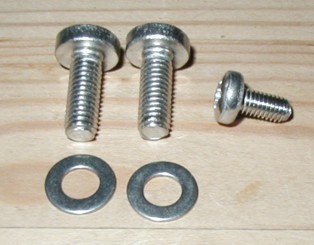

BYV-4.6.1   Deck Lid Lock & Catch-Plate Screws


Exterior Appendages & Add-Ons
BYV-5.1.1   Tail-Lights (EARLY - Split Screen Van Style)
BYV-5.1.2   Tail-Lights (LATE 1972 To 1979)
BYV-5.1.3   SECURITY Tail-Light Screws (EARLY BAY)
BYV-5.1.4   SECURITY Tail-Light Screws (LATE BAY)

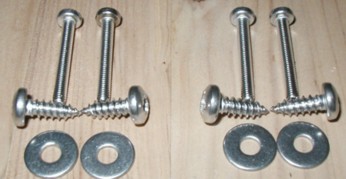

BYV-5.2.1   Stainless Steel Front Indicator Screws (EARLY - low mounted near bumper)
BYV-5.2.2   Stainless Steel Front Indicator Screws (LATE - next to front grill)
BYV-5.2.3   SECURITY Front Indicator Screws (EARLY Bay)
BYV-5.2.4   SECURITY Front Indicator Screws (LATE Bay) front indicator screws

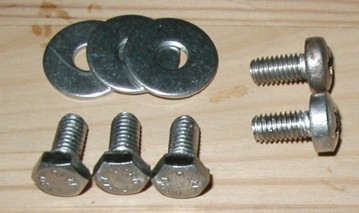

BYV-5.3.1   Fuel Door Hinge & Fuel Filler Neck Screws
BYV-5.4.1   SECURITY Headlamp Screws headlight fitting screws

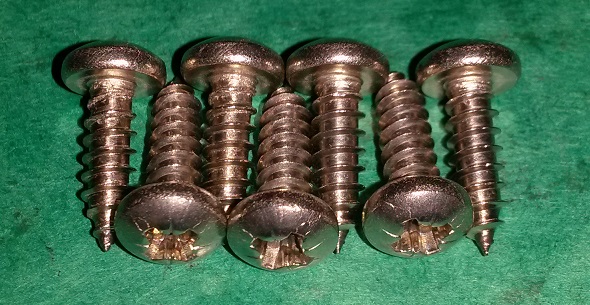

BYV-5.5.1   Front Fresh-Air Inlet Grill Screws VW air inlet grill
BYV-5.6.1   1970-72 Windshield Wiper Arm Fitting STAINLESS Nuts VW Wiper arm nuts


Interior Fixtures & Fittings
BYV-6.1.1   Cab Door Pillar Switch (for interior lights) Screws
BYV-6.2.1   Gear Stick Mount Screws

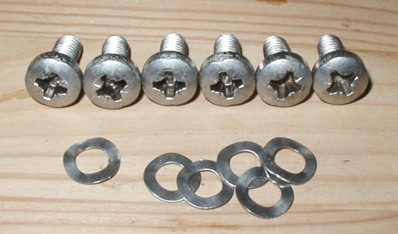

BYV-6.3.1   Dashboard Corner Screws

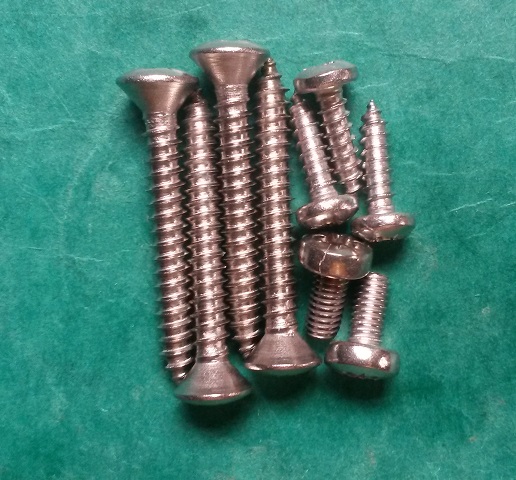

BYV-6.4.1   Instrument 'Pod' To Dashboard Screws
BYV-6.5.1   Sunvisor Screws
BYV-6.6.1   Rear-View Mirror Screws
BYV-6.7.1   Dashboard Grab-Handle Fitting Nuts
BYV-6.8.1   Dashboard Top & Dashboard Vent Screws

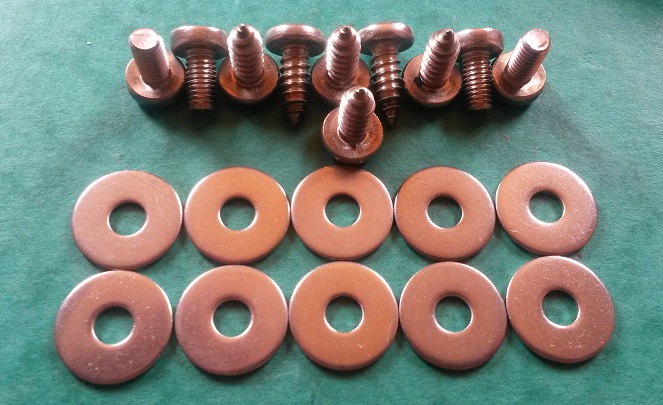

BYV-6.9.1   Pedal Cluster Cover-Pan Screws
SSV-6.10.1
  Internal Panel Trimming POZI Screws + Cups (Stock VW 13mm Screws)
SSV-6.10.2
  'Extra Length' Internal Panels Trim POZI Screws & Cups- 18mm long
SSV-6.10.3
  Internal Panel Trimming SLOTTED Screws & Cups - Stock 13mm Length
SSV-6.10.4
  'Extra Length' Internal Panel Trimming SLOTTED Screws & Cups - 18mm Length
M4 CUP
  Solid Counter-Sinking Cups For Internal Panel Screws
  (Use In Place Of Ordinary Pressed Sheet Metal Ones)


Electrical, Instrumentation, & Misc Fittings
VWB-7.1.1   Split Pins (Cotter Pins) For Rear Wheel / Brake Hubs (10 pack)
VWB-7.3.1   Swing Axle Gaitor Clamp and Bolt Kit - Fits 1 Gaitor
VWB-7.5.1   Pivot / Shaft Clips For Sloping Headlamps & Wiper Mechanisms - 5 Pack
ELE-1.1.1   Electrical Connectors - 50 Pack - 0-15Amp Low Current Wires
ELE-1.1.2   Electrical Connectors - 50 Pack - 15-30Amp Higher Current Wires
ELE-1.1.5   Connector Insulation Boots - 50 Pack
ELE-1.4.1   Electrical Connectors - 10 Pack - Headlamp "Flag" Connectors
ELE-1.5.2   Electrical Connectors - 5 Pack - Voltage Regulator X.Large Connectors
ELE-1.6.1   Electrical Earth Tabs - Single Tab
ELE-1.7.1   Electrical Earth Tabs - Double Tab


FACTORY OPTIONAL Fixtures & Fittings
SSV-8.2.1   Jail Bar / Safety Bar Fitting Screws


10:9 High Tensile Bolts (Dacromet Surface Finish - Unless Otherwise Indicated)
BYV-10.1.1   Front Beam Fitting Bolts
BYV-10.1.2   Front Beam Fitting Special Washers
BYV-10.2.1   FRONT Shock Absorber Fitting Bolts
BYV-10.2.2   REAR Shock Absorber Fitting Bolts
BYV-10.3.1   Rear Spring Plate Bolts
BYV-10.4.1   CV Joint Bolts
BYV-10.4.2   CV Joint Bolts (12 Pack For One Driveshaft)
BYV-10.5.1   Rear Torsion Beam Cover Bolts (25mm Length)

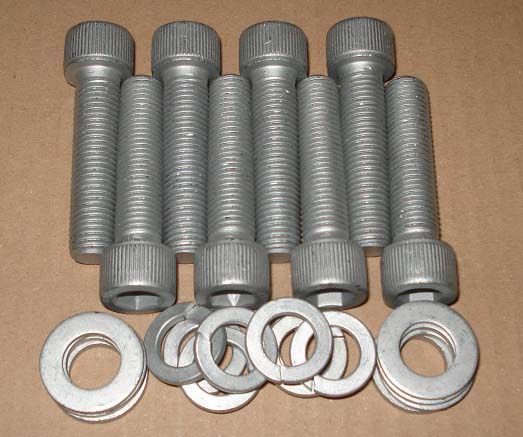

BYV-10.6.1   Rear Engine Carrier Bar Bolts
BYV-10.7.1   Steering Column Coupling Bolts & Nuts
